World Class Action Park Attraction with AFS Rediwall

Nestled between the mountains and the sea, just an hour south of Sydney, Jamberoo Action Park is NSW's largest family owned and operated water theme park. In 2019 the park lodged a development application for the construction of a spectacular new '˜high adrenaline' dual waterslide, Velocity Falls.

After using AFS Rediwall in the construction of his own house, the owner of Jamberoo Action Park was so impressed, he decided to use it in the build of the park's latest water attraction.

A Monstrous Octopus

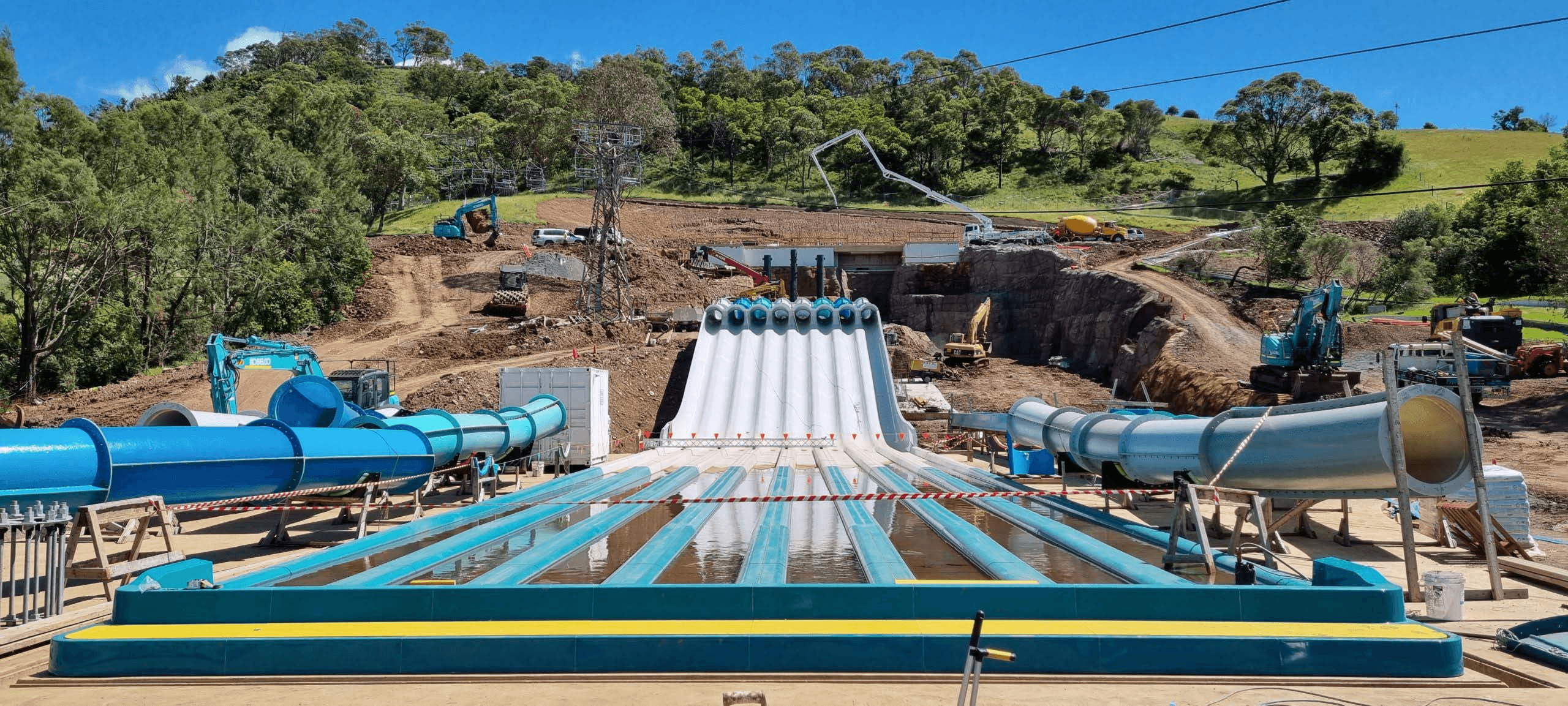

This multi million dollar project, designed by Queensland architect Alan Griffith, is described as an eight lane 'Octokraken Racer', with an overall ride length of around 160 metres and an elevational drop of 21.59 metres.

"The Falls also incorporates and additional two 'multi bump speed slides', which take off from a 'Skybox vertical launch' platform, through the gorge rock strata to the splash down on each side of the Octokraken Racer" Alan said.

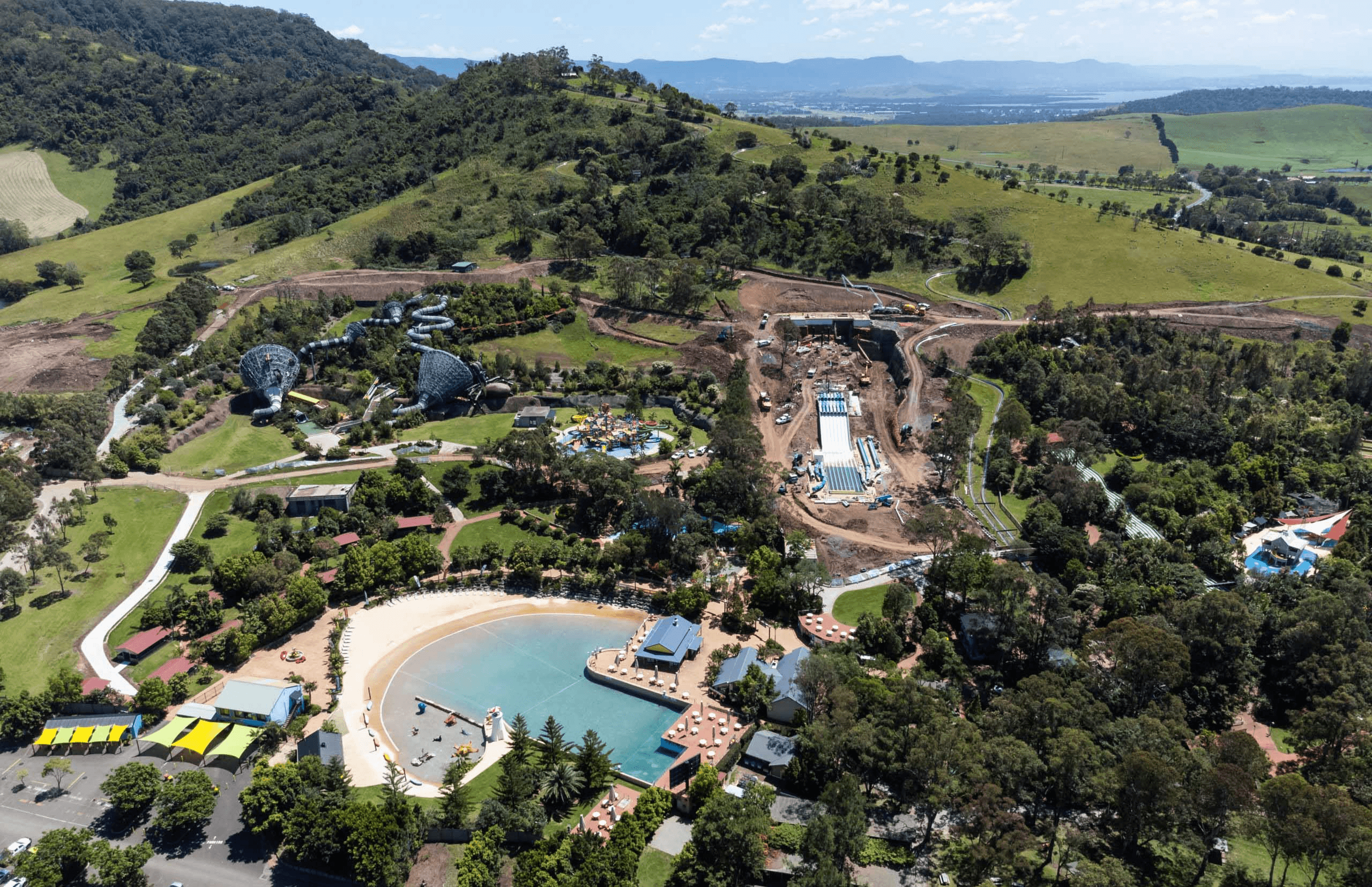

And yes, from an aerial view, it does look like a monstrous Octopus.

Jamberoo Action Park Octokraken Racer Construction

Loading component...

When it comes to the construction of the biggest and best water ride of its kind in the world, you want to make sure you're using the best technologies and methodologies to build it. After having witnessed firsthand the strength, versatility and installation speed of the AFS Rediwall system in his own home build, the action park owner didn't take much convincing to use AFS Rediwall extensively throughout the Velocity Falls development.

Builder, Jason Van Overmier of Urban Style Building Services explains how Rediwall came to be used in both projects.

"I showed him the AFS product and what I'd done previously with it, and he was really happy to use that on his [home build project and he was so happy with the speed and the ability to get the product up and make it work for all different areas, so we decided to integrate it into the construction here [at Velocity Falls]."

Loading component...

Construction started during the Covid and severe weather event years of 2020 and 2021, with delays and postponements needing to be factored into the building schedule.

The Urban Style Building Services team, lead by Jason, installed AFS Rediwall throughout the project.

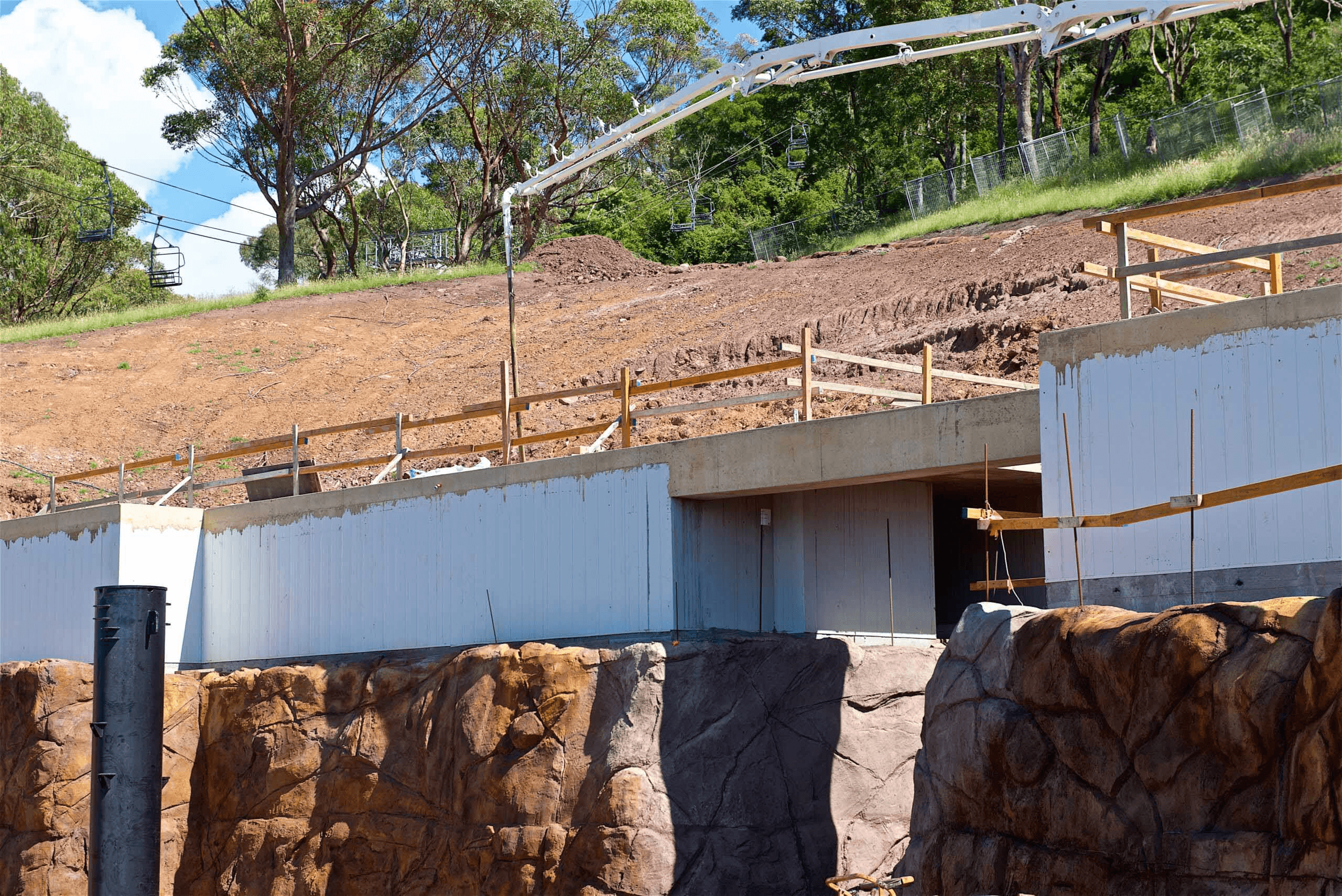

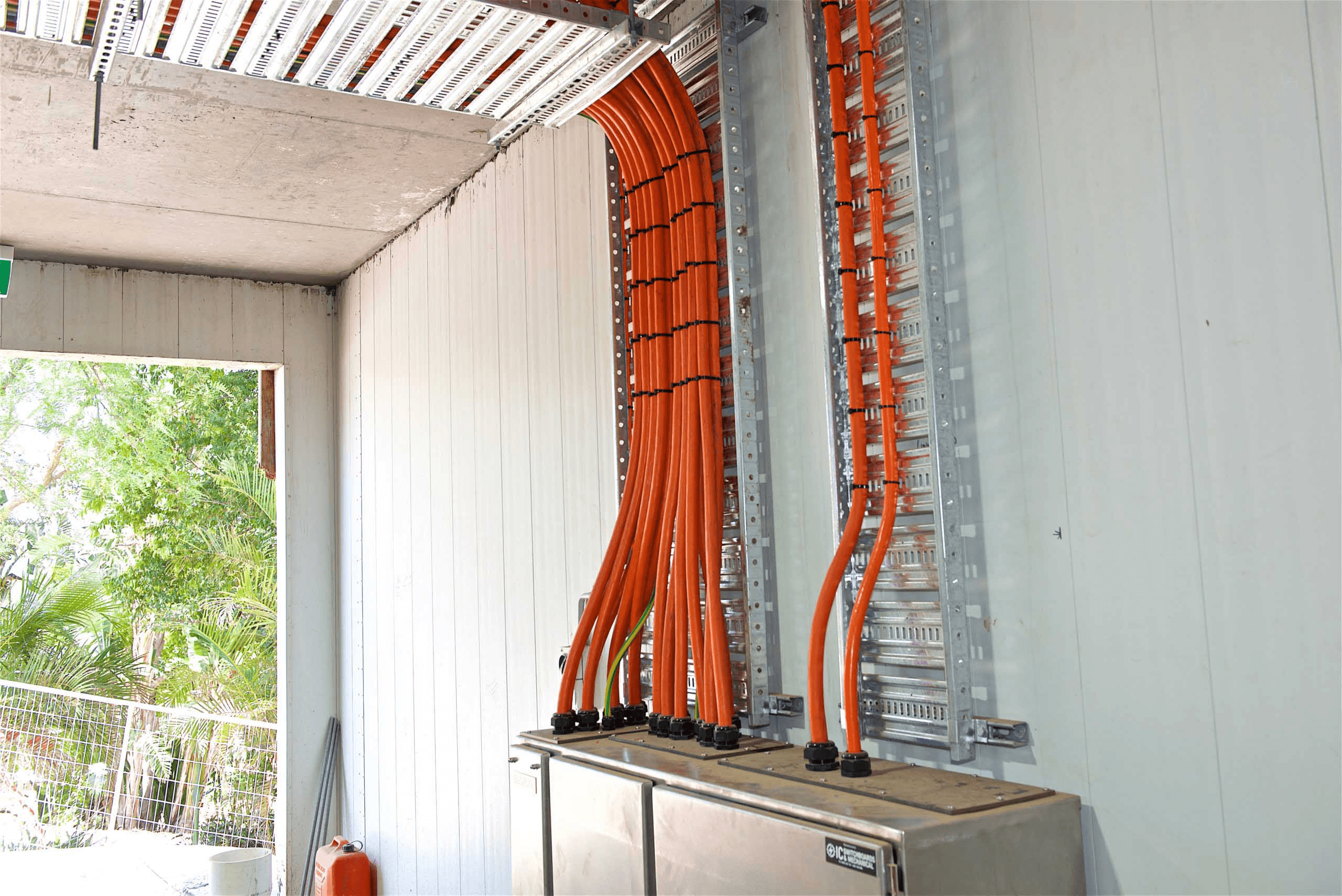

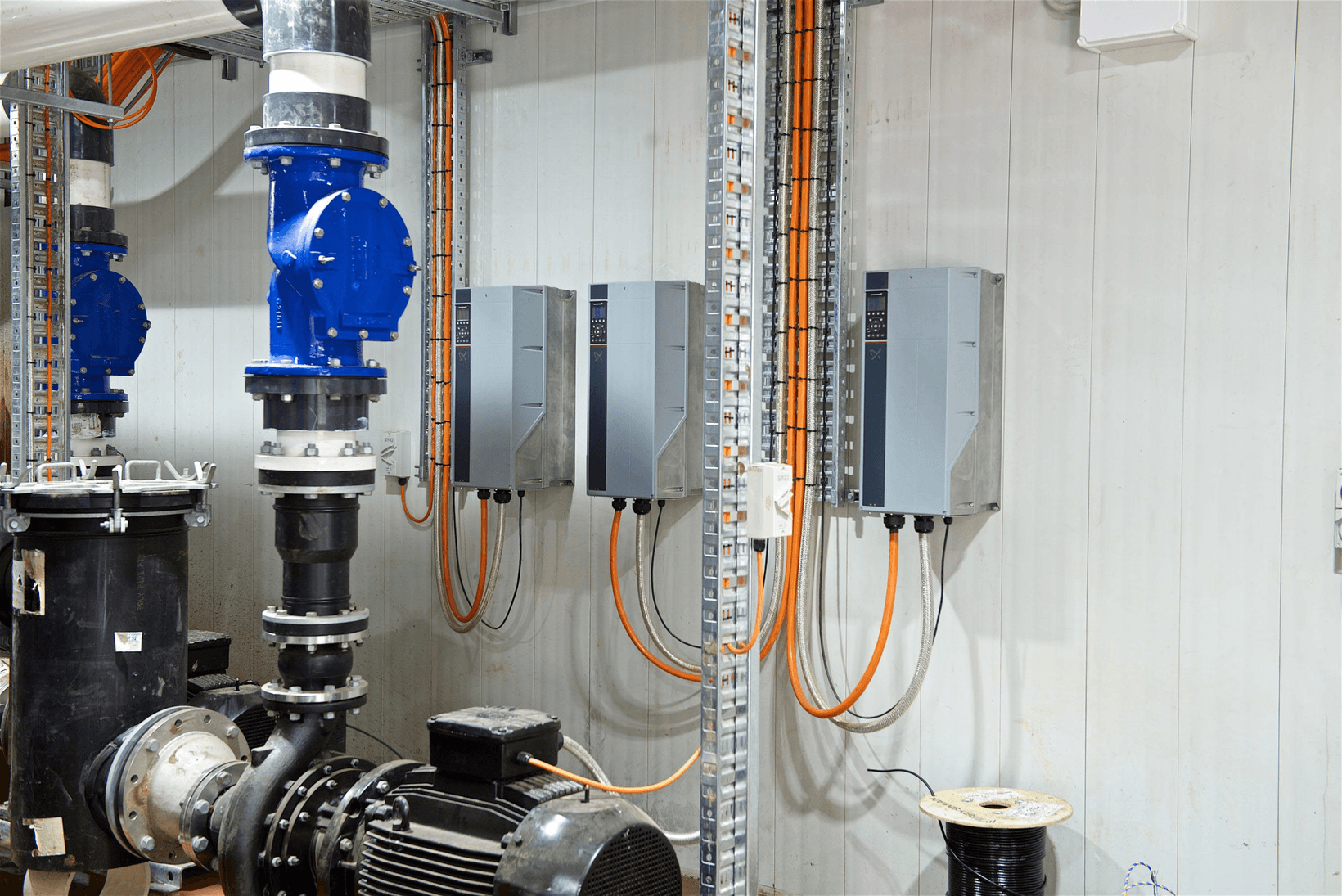

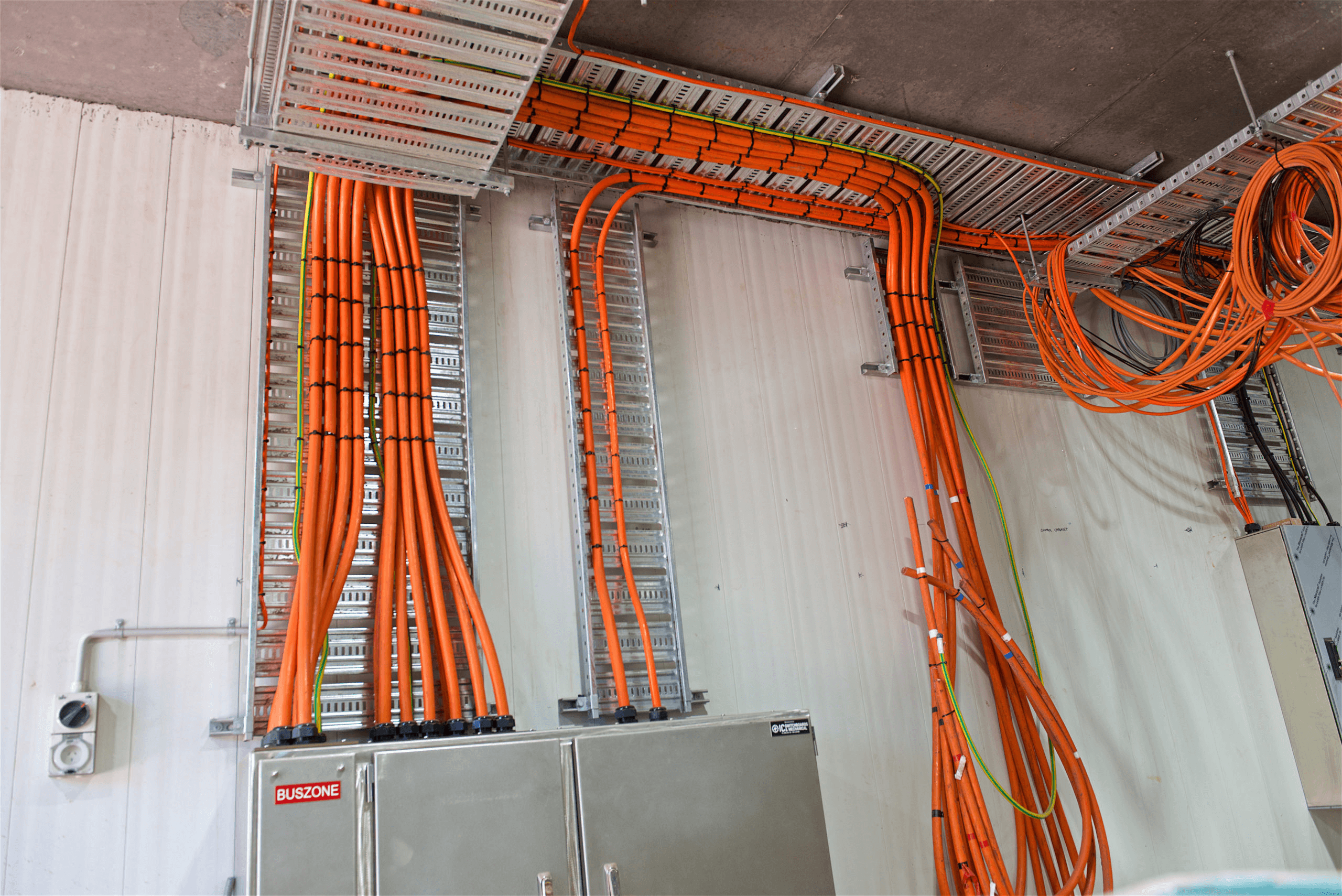

"We've used it on the pump house, which houses six pumps, which pump all the water back up to the tower, which is also constructed with the AFS Rediwall product."

"I showed him the AFS product and what I'd done previously with it, and he was really happy to use that on his [home build project and he was so happy with the speed and the ability to get the product up and make it work for all different areas, so we decided to integrate it into the construction here [at Velocity Falls]"

Jason Van Overmier, Urban Style Building Services

Loading component...

AFS Rediwall Trusted For Mission Critical Applications

"And then we've also built a 450,000 litre capacity water tank, which will then carry all the water flow from the waterfall and then down to this pump room and then get returned back up to the tower." With Jason's experience using AFS Rediwall in other challenging projects, he is familiar with its strong performance and is confident in the Rediwall system's capability.

Being a load bearing structural walling solution, Rediwall is also used in other mission critical applications throughout the site.

"We are using it on pedestal retaining walls, which will actually support the water slide. And we've also got a couple of tunnels that we need to manufacture as well out of AFS for the toboggan tracks."

Loading component...

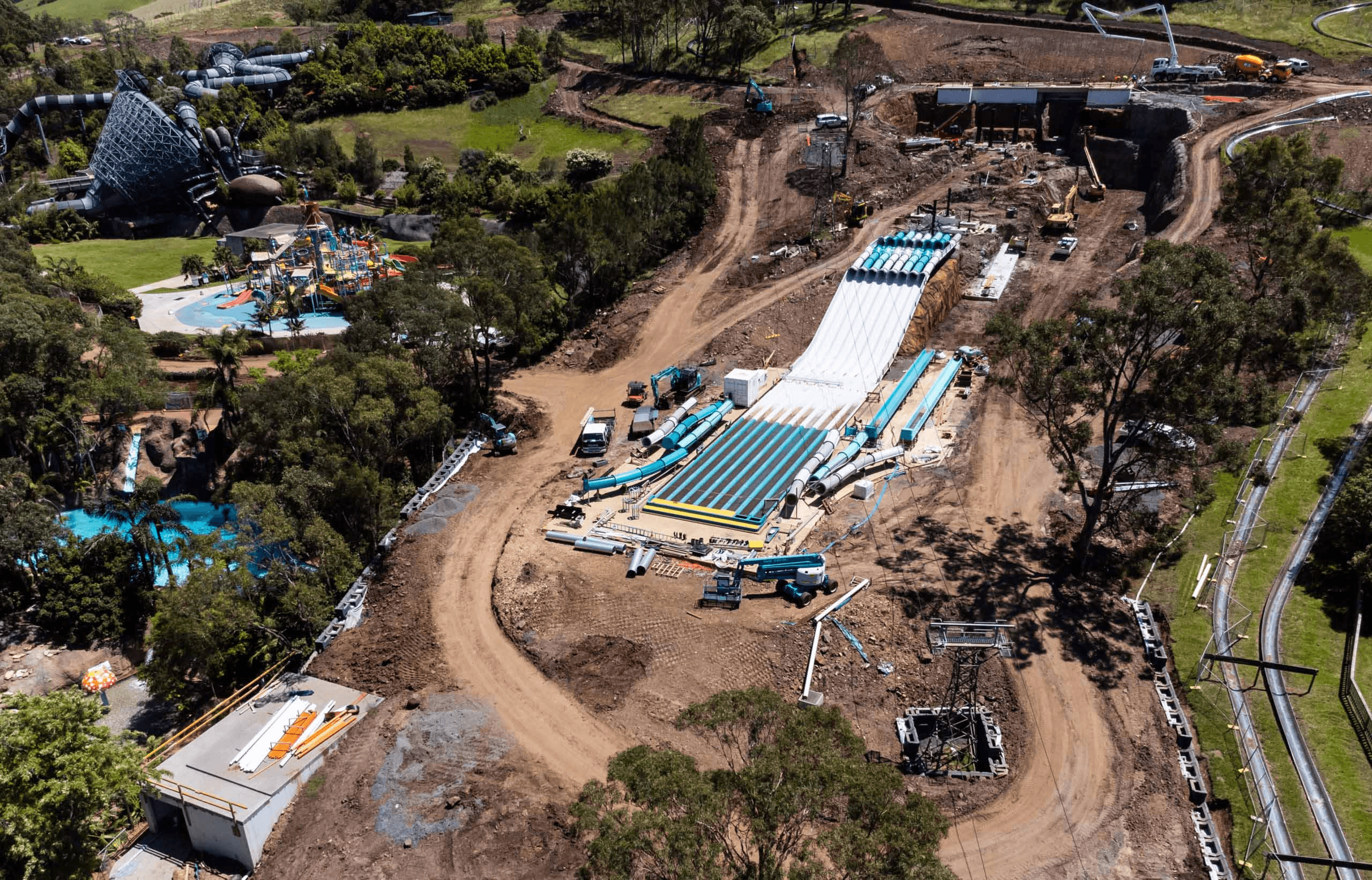

To embed the slide and its water carrying structures into the hill, extensive excavation and tunnelling work was required, and so it was important to be able to install the retaining walling quickly and safely to avoid the potential of earthen banks collapsing. Jason compared the choice of AFS Rediwall to conventional blockwork.

"In terms of speed and getting walls up in areas where you may have an issue with water seepage or earth banks collapsing, we can have the product installed a lot quicker, get them poured in a timely manner."

Loading component...

Benefits Continue To Impress

Jason went on to commend Rediwall for its clean worksite benefits. "It's a good product and we're happy to use it everywhere we can with eliminating the issues of having a wet trade on site - block layers, brick layers."

Customer support from the local CSR product team is also highly valued by the Urban Style Building Services crew. "Never had any issues with getting materials on site. Always had a good relationship with the project managers and supplier in that regard and get along well with them. It makes our job a lot easier."
